Installation
Installation is engineered for precision and durability, delivering a seamless, professional finish built to last.

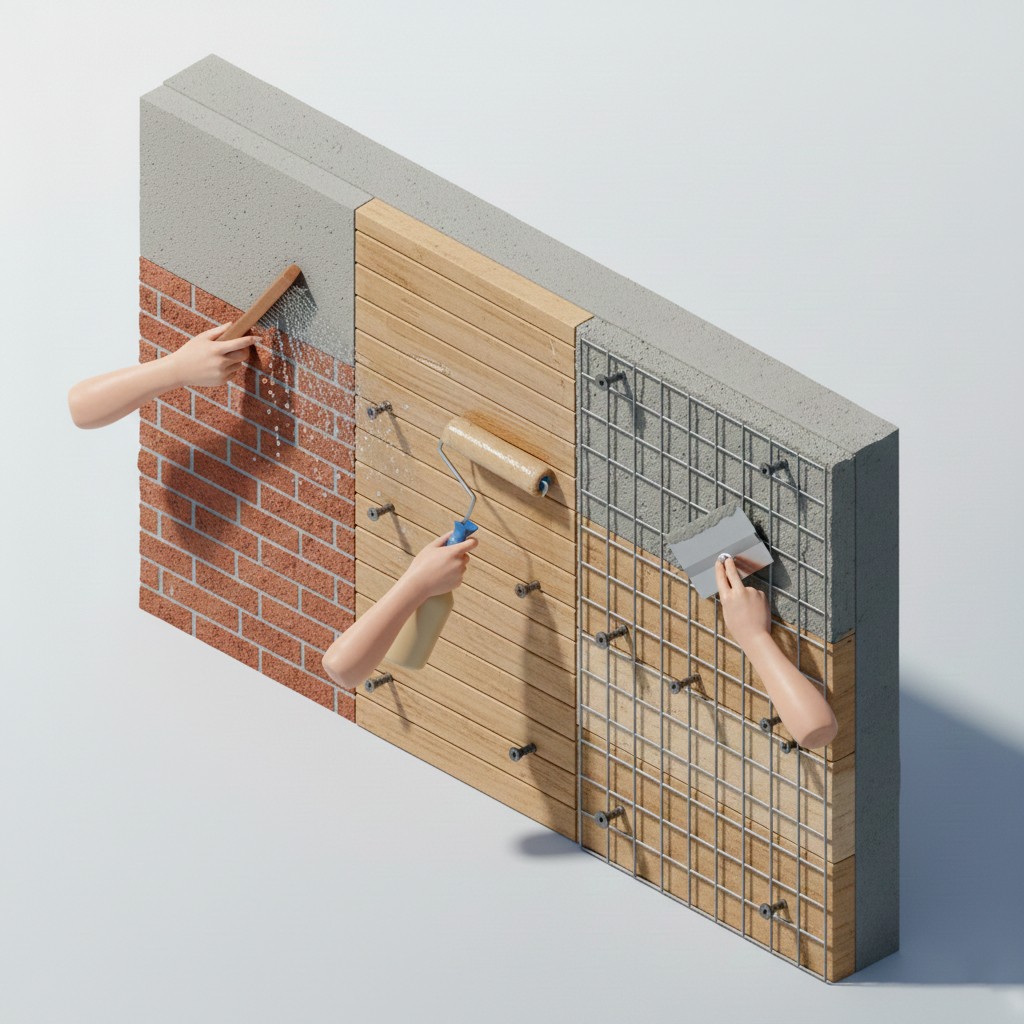

Surface Preparation
Stable Surfaces: Can be installed on any solid base.
Wood, Metal, or Insulation: Must be covered with a metal mesh (5-10cm grid), overlapped by 5cm, and secured with screws/nails every 15-20cm.
Waterproofing: Apply a protective coating (PVC varnish) on wooden bases before the mesh.
Base Coat: For mesh surfaces, apply a thin cement layer and let dry for 24-48 hours. Concrete and brick walls only need cleaning and light moistening.
Surface Preparation
Stable Surfaces: Can be installed on any solid base.
Wood, Metal, or Insulation: Must be covered with a metal mesh (5-10cm grid), overlapped by 5cm, and secured with screws/nails every 15-20cm.
Waterproofing: Apply a protective coating (PVC varnish) on wooden bases before the mesh.
Base Coat: For mesh surfaces, apply a thin cement layer and let dry for 24-48 hours. Concrete and brick walls only need cleaning and light moistening.

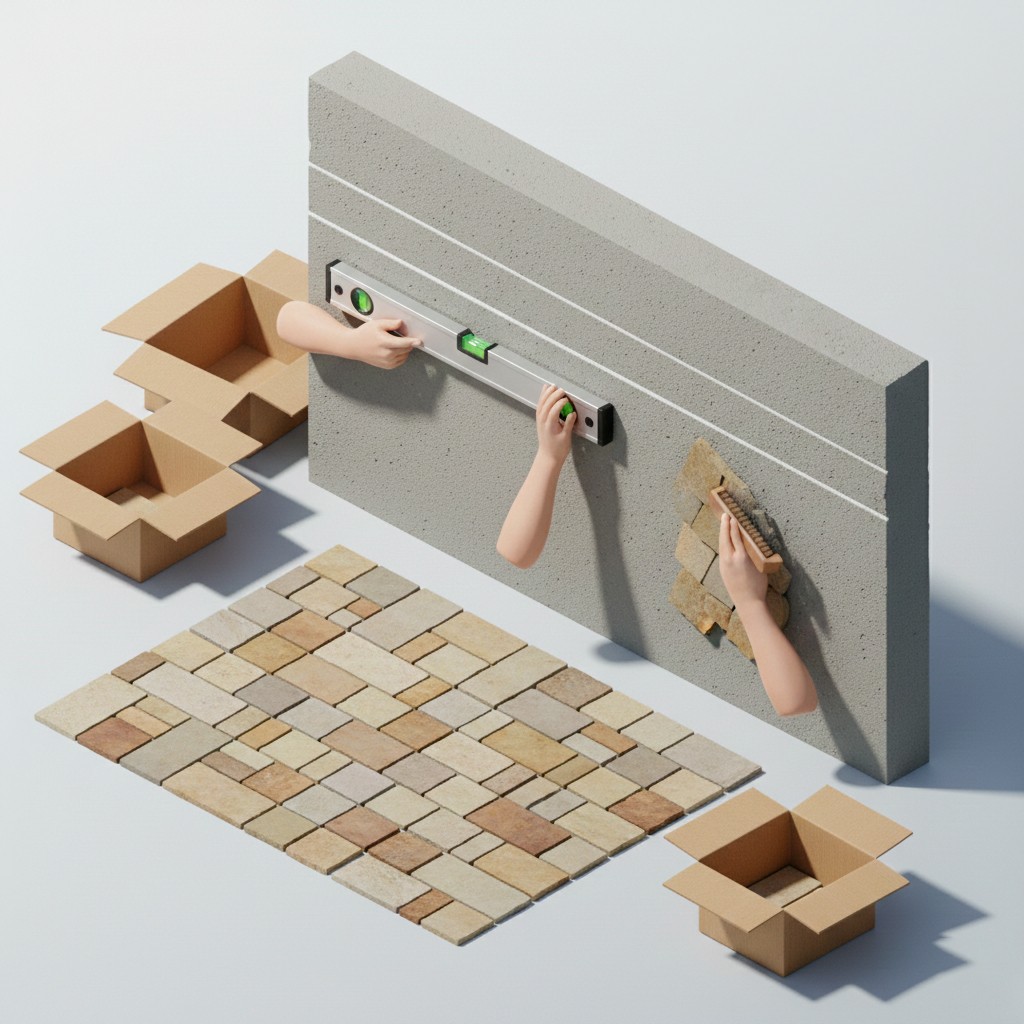

Layout & Planning
Marking: Use a level and chalk line to draw horizontal guide lines.
Blending: Open several boxes at once and pre-arrange 2-5 m2 on the ground to mix color shades naturally.
Cleaning: Wire-brush the back of the tiles to remove dust. Ensure they are clean but not soaking wet.
Layout & Planning
Marking: Use a level and chalk line to draw horizontal guide lines.
Blending: Open several boxes at once and pre-arrange 2-5 m2 on the ground to mix color shades naturally.
Cleaning: Wire-brush the back of the tiles to remove dust. Ensure they are clean but not soaking wet.

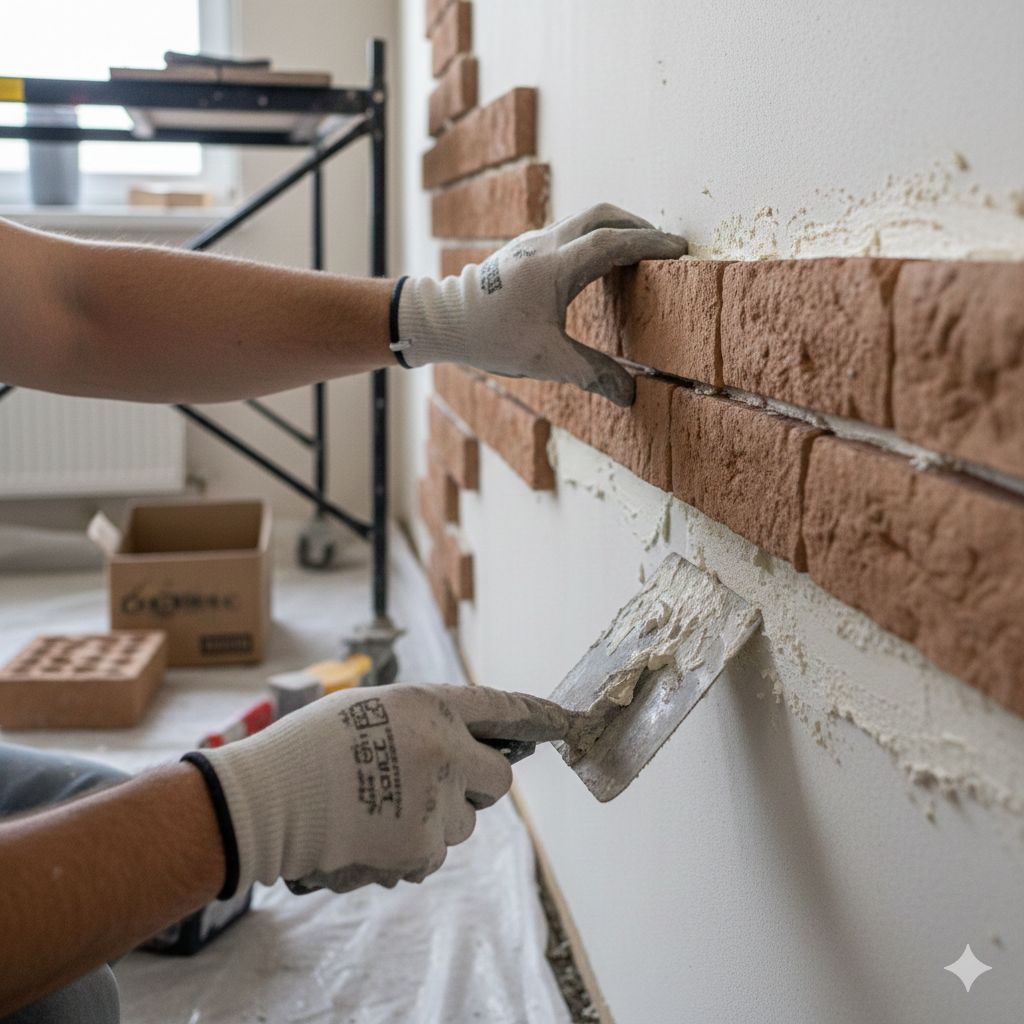

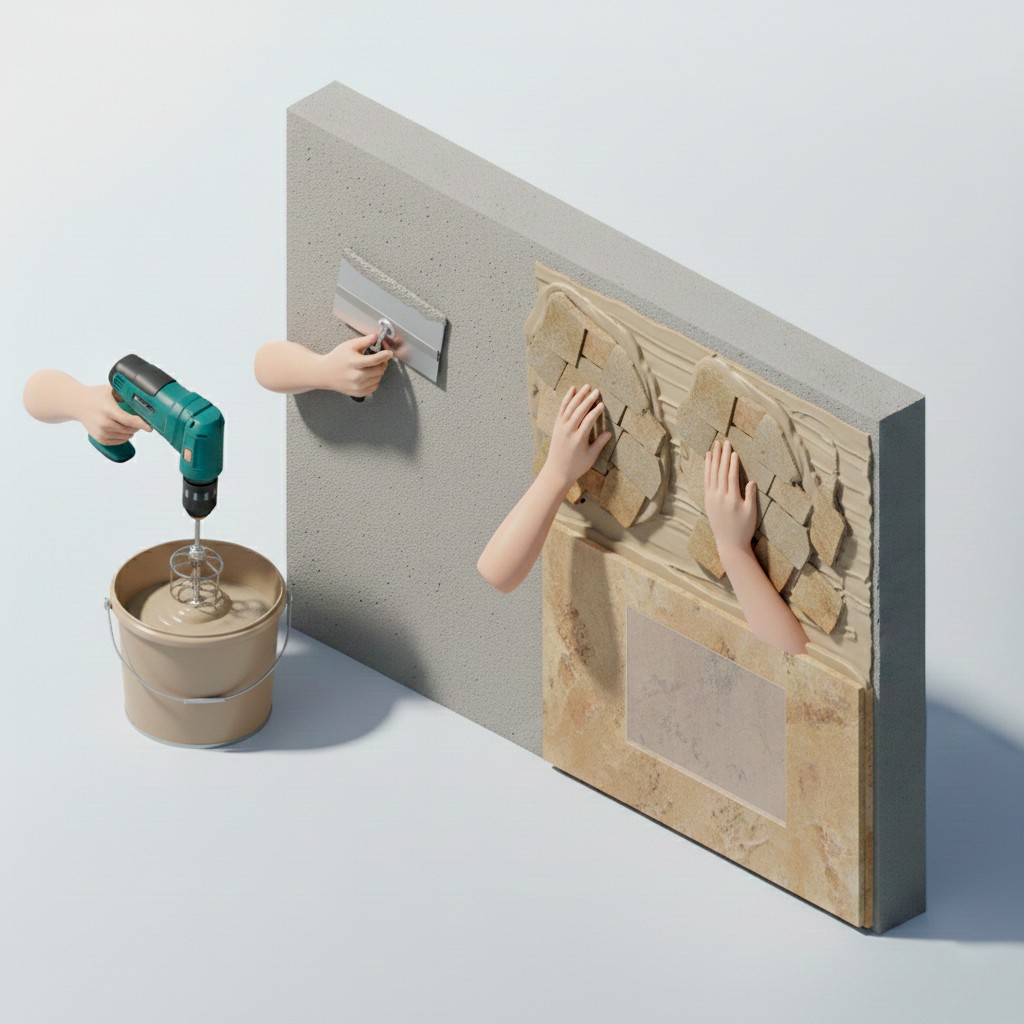

Application & Mounting
Adhesive: Use cement-based tile adhesive (for stone/concrete) or gypsum adhesive (for gypsum products).
Consistency: The mortar should be thick enough not to slide off a vertical trowel.
Technique: Press the element firmly and wiggle it slightly to distribute the glue.
Pressure: Apply enough pressure so the adhesive spreads to the edges. For large pieces, apply glue to the edges only to create a "vacuum effect."
Thickness: Aim for a 5-10mm adhesive layer.
Application & Mounting
Adhesive: Use cement-based tile adhesive (for stone/concrete) or gypsum adhesive (for gypsum products).
Consistency: The mortar should be thick enough not to slide off a vertical trowel.
Technique: Press the element firmly and wiggle it slightly to distribute the glue.
Pressure: Apply enough pressure so the adhesive spreads to the edges. For large pieces, apply glue to the edges only to create a "vacuum effect."
Thickness: Aim for a 5-10mm adhesive layer.

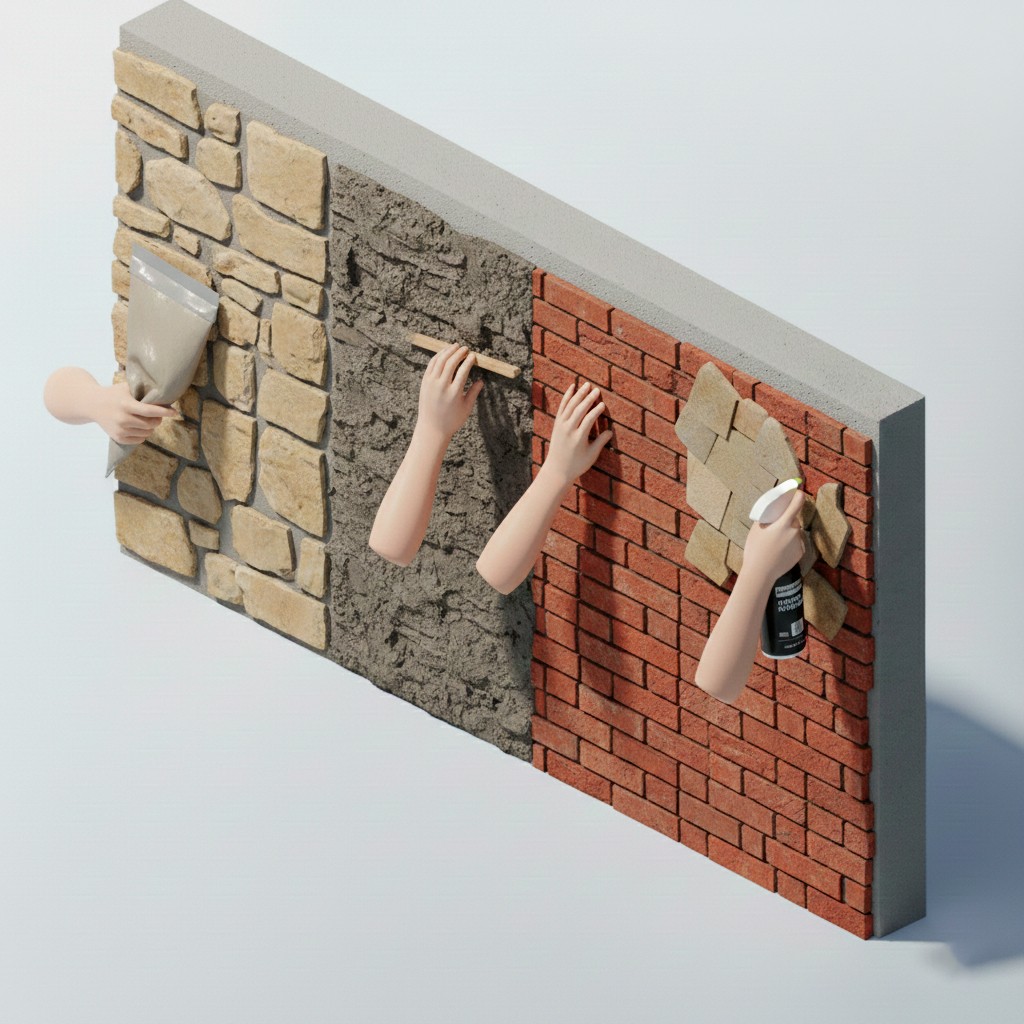

Grouting & Finishing
Exterior Walls: Joints must be fully sealed to prevent water damage.
Jointing: Use a grout bag or spatula. For a "dry-stack" look, let the squeezed-out mortar dry for 12-18 hours before cleaning with a wooden stick.
Brick Cladding: Often requires no extra grout if the adhesive fills the gaps during pressing.
Sealing: You may apply a water-based stone sealer 2-3 days after installation once completely dry.
Grouting & Finishing
Exterior Walls: Joints must be fully sealed to prevent water damage.
Jointing: Use a grout bag or spatula. For a "dry-stack" look, let the squeezed-out mortar dry for 12-18 hours before cleaning with a wooden stick.
Brick Cladding: Often requires no extra grout if the adhesive fills the gaps during pressing.
Sealing: You may apply a water-based stone sealer 2-3 days after installation once completely dry.

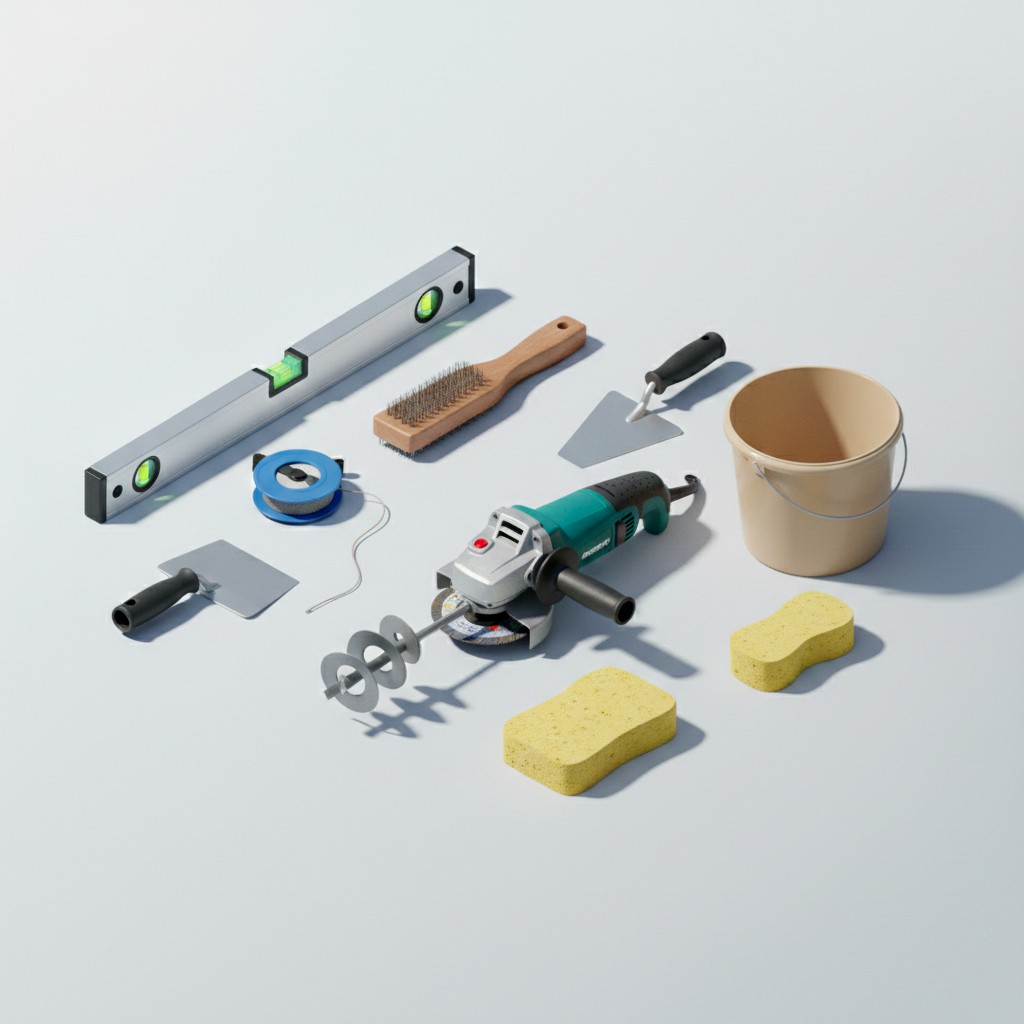

Essential Tools
Essential Tools
- Level, Chalk line, Wire brush.
- Level, Chalk line, Wire brush.
- Notched trowel, Angle grinder (diamond blade).
- Notched trowel, Angle grinder (diamond blade).
- Drill with mixer, Bucket, Damp sponge.
- Drill with mixer, Bucket, Damp sponge.
Essential Tools
- Level, Chalk line, Wire brush.
- Notched trowel, Angle grinder (diamond blade).
- Drill with mixer, Bucket, Damp sponge.
